Elbow

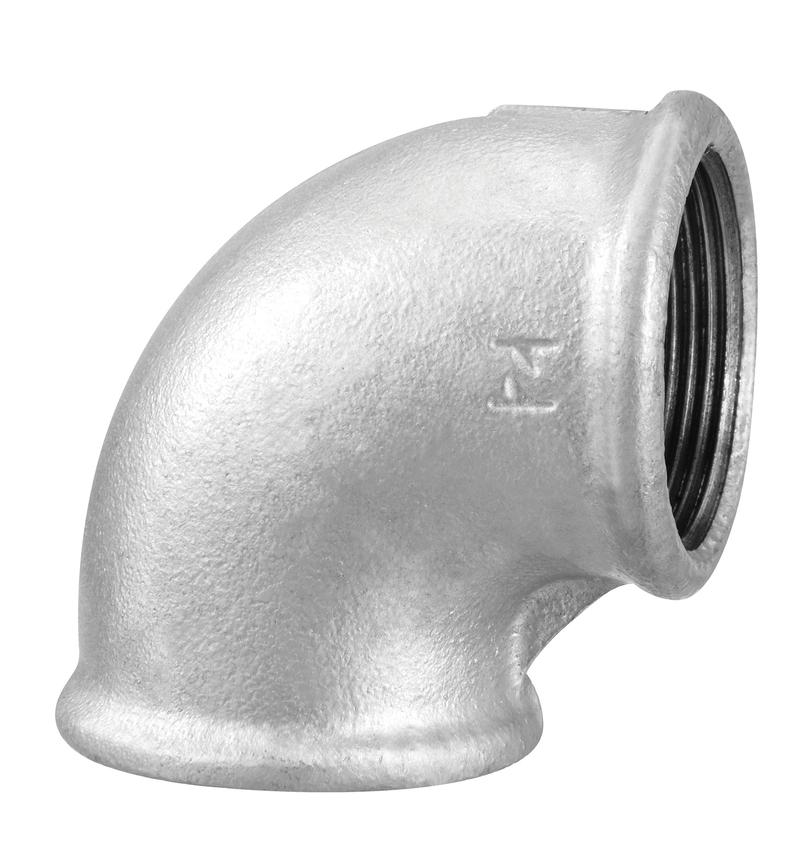

90° elbow with two female ends, to turn the line at a right angle (figure 90). Available in 13 sizes, from 1/4" to 6". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1207002 | ELBOW 1/4" | BSP | 90 | |
| 1207003 | ELBOW 3/8" | BSP | 90 | |
| 1207004 | ELBOW 1/2" | BSP | 90 | |
| 1207006 | ELBOW 3/4" | BSP | 90 | |
| 1207007 | ELBOW 1" | BSP | 90 | |
| 1207008 | ELBOW 1 1/4" | BSP | 90 | |
| 1207009 | ELBOW 1 1/2" | BSP | 90 | |
| 1207010 | ELBOW 2" | BSP | 90 | |
| 1207011 | ELBOW 2 1/2 " | BSP | 90 | |
| 1207012 | ELBOW 3" | BSP | 90 | |
| 1207014 | ELBOW 4" | BSP | 90 | |
| 1207015 | ELBOW 5" | BSP | 90 | |
| 1207016 | ELBOW 6" | BSP | 90 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 1/4″ | 8mm | 21 | 37 | |
| 3/8″ | 10mm | 25 | 70 | |
| 1/2″ | 15mm | 28 | 90 | |
| 3/4″ | 20mm | 33 | 138 | |
| 1″ | 25mm | 38 | 215 | |
| 1.1/4″ | 32mm | 45 | 328 | |
| 1.1/2″ | 40mm | 50 | 471 | |
| 2″ | 50mm | 58 | 714 | |
| 2.1/2″ | 65mm | 69 | 1138 | |
| 3″ | 80mm | 78 | 1730 | |
| 4″ | 100mm | 96 | 2875 | |
| 5″ | 125mm | 115 | 4630 | |
| 6″ | 150mm | 131 | 8157 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
