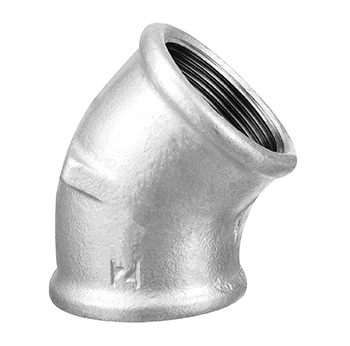

45° Elbow
45° elbow with two female ends, to offset the line without the sharp turn of a 90° elbow. Available in 12 sizes, from 3/8" to 6". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1209004 | ELBOW 45º 3/8" | BSP | 120 | |
| 1209003 | ELBOW 45º 1/2" | BSP | 120 | |
| 1209006 | ELBOW 45º 3/4" | BSP | 120 | |
| 1209007 | ELBOW 45º 1" | BSP | 120 | |
| 1209008 | ELBOW 45º 1 1/4" | BSP | 120 | |
| 1209009 | ELBOW 45º 1 1/2" | BSP | 120 | |
| 1209010 | ELBOW 45º 2" | BSP | 120 | |
| 1209011 | ELBOW 45º 2 1/2" | BSP | 120 | |
| 1209012 | ELBOW 45º 3" | BSP | 120 | |
| 1209014 | ELBOW 45º 4" | BSP | 120 | |
| 1209015 | ELBOW 45º 5" | BSP | 120 | |
| 1209016 | ELBOW 45º 6" | BSP | 120 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 3/8″ | 10mm | 20 | 52 | |
| 1/2″ | 15mm | 22 | 72 | |
| 3/4″ | 20mm | 25 | 111 | |
| 1″ | 25mm | 28 | 165 | |
| 1.1/4″ | 32mm | 33 | 269 | |
| 1.1/2″ | 40mm | 36 | 390 | |
| 2″ | 50mm | 43 | 511 | |
| 2.1/2″ | 65mm | 50 | 905 | |
| 3″ | 80mm | 55 | 1155 | |
| 4″ | 100mm | 66 | 1966 | |
| 5″ | 125mm | 80 | 3715 | |
| 6″ | 150mm | 85 | 5905 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
