Short Radius Male & Female Bend 1/2"

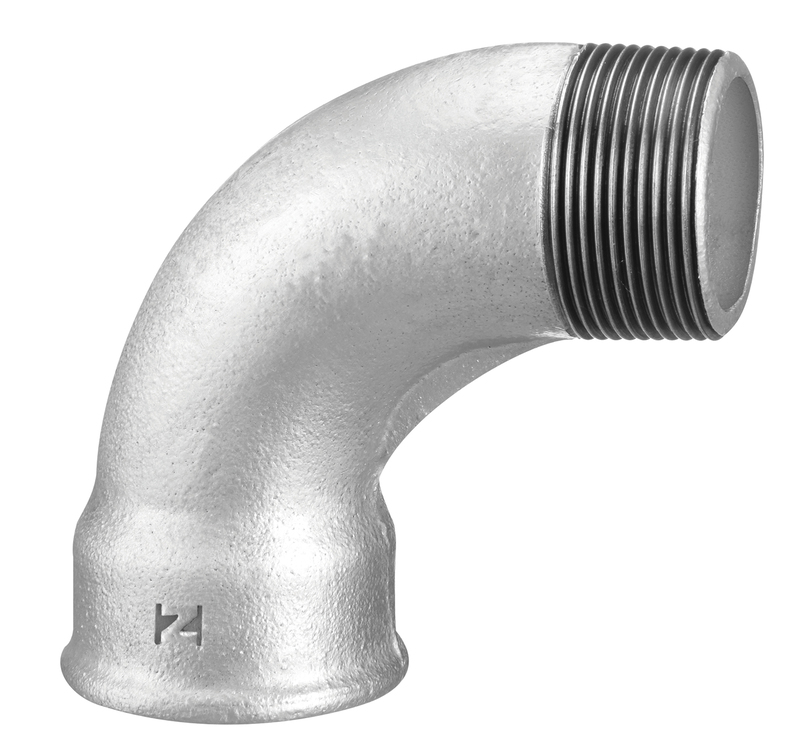

Short radius 90° bend with one male and one female end (figure 1a), to turn and continue the line with no intermediate fitting. Available in 6 sizes, from 1/2" to 2". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure | Pol |
| 1222004 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | ½” | |
| 1222006 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | ¾” | |
| 1222007 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | 1” | |
| 1222008 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | 1 ¼” | |
| 1222009 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | 1 ½” | |
| 1222010 | SHORT RADIUS MALE AND FEMALE BEND | BSP | 1a | 2” |
| Quote | Description | Diameter (mm) | A (mm) | Weight (g) |
| SHORT RADIUS MALE AND FEMALE BEND 1/2″ | 15mm | 45 | 109 | |
| SHORT RADIUS MALE AND FEMALE BEND 3/4″ | 20mm | 50 | 170 | |
| SHORT RADIUS MALE AND FEMALE BEND 1″ | 25mm | 63 | 325 | |
| SHORT RADIUS MALE AND FEMALE BEND 1.1/4″ | 32mm | 76 | 564 | |
| SHORT RADIUS MALE AND FEMALE BEND 1.1/2″ | 40mm | 85 | 666 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
