Male & Female Bend

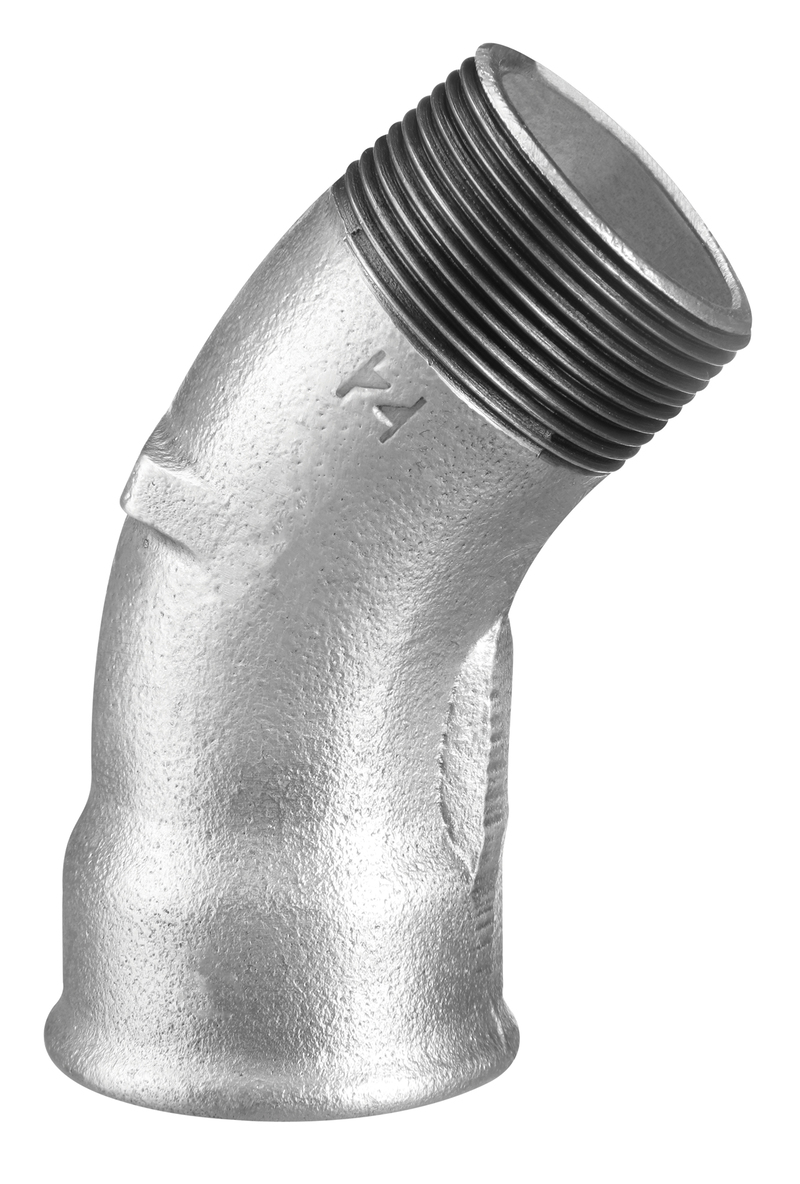

45° bend with one male and one female end (figure 40), to offset the line screwing straight into the next fitting. Available in 9 sizes, from 3/8" to 3". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1227003 | MALE & FEMALE BEND 45º 3/8" | BSP | 40 | |
| 1227004 | MALE & FEMALE BEND 45º 1/2" | BSP | 40 | |
| 1227006 | MALE & FEMALE BEND 45º 3/4" | BSP | 40 | |
| 1227007 | MALE & FEMALE BEND 45º 1" | BSP | 40 | |
| 1227008 | MALE & FEMALE BEND 45º 1 1/4" | BSP | 40 | |
| 1227009 | MALE & FEMALE BEND 45º 1 1/2" | BSP | 40 | |
| 1227010 | MALE & FEMALE BEND 45º 2" | BSP | 40 | |
| 1227011 | MALE & FEMALE BEND 45º 2 1/2" | BSP | 40 | |
| 1227012 | MALE & FEMALE BEND 45º 3" | BSP | 40 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | H (mm) | Weight (g) |
| 3/8″ | 10mm | 62 | |||
| 1/2″ | 15mm | 36 | 30 | 108 | |
| 3/4″ | 20mm | 43 | 36 | 182 | |
| 1″ | 25mm | 51 | 42 | 273 | |
| 1.1/4″ | 32mm | 64 | 54 | 423 | |
| 1.1/2″ | 40mm | 68 | 58 | 537 | |
| 2″ | 50mm | 81 | 70 | 982 | |
| 2.1/2″ | 65mm | 99 | 86 | 1322 | |
| 3″ | 80mm | 113 | 100 | 2073 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
