Hex Flange

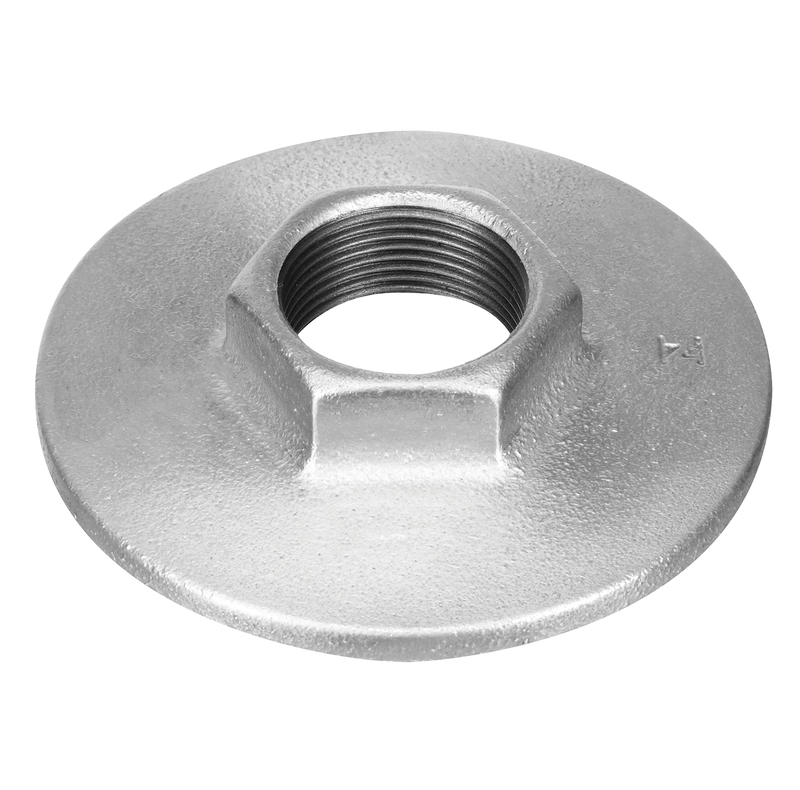

Flange with hexagon (figure 321), female threaded with a hex body for a wrench, which ends a threaded line in a flanged face. Available in 13 sizes, from 1/4" to 6". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1299002 | HEX FLANGE 1/4" | BSP | 321 | |
| 1299003 | HEX FLANGE 3/8" | BSP | 321 | |
| 1299004 | HEX FLANGE 1/2" | BSP | 321 | |
| 1299006 | HEX FLANGE 3/4" | BSP | 321 | |
| 1299007 | HEX FLANGE 1" | BSP | 321 | |
| 1299008 | HEX FLANGE 1.1/4" | BSP | 321 | |
| 1299009 | HEX FLANGE 1.1/2" | BSP | 321 | |
| 1299010 | HEX FLANGE 2" | BSP | 321 | |
| 1299011 | HEX FLANGE 2.1/2" | BSP | 321 | |
| 1299012 | HEX FLANGE 3" | BSP | 321 | |
| 1299014 | HEX FLANGE 4" | BSP | 321 | |
| 1299015 | HEX FLANGE 5" | BSP | 321 | |
| 1299016 | HEX FLANGE 6" | BSP | 321 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | D (mm) | S (mm) | e (mm) | Weight (g) |
| 1/4″ | 8mm | 11 | 70 | 18 | 5 | 137 | |
| 3/8″ | 10mm | 11 | 75 | 22 | 5 | 162 | |
| 1/2″ | 15mm | 15 | 80 | 26 | 5 | 187 | |
| 3/4″ | 20mm | 16 | 90 | 32 | 5 | 262 | |
| 1″ | 25mm | 19 | 100 | 39 | 6 | 350 | |
| 1.1/4″ | 32mm | 21 | 120 | 49 | 6 | 553 | |
| 1.1/2″ | 40mm | 21 | 130 | 55 | 7 | 674 | |
| 2″ | 50mm | 26 | 140 | 69 | 8 | 929 | |
| 2.1/2″ | 65mm | 30 | 160 | 84 | 9 | 1353 | |
| 3″ | 80mm | 33 | 190 | 98 | 10 | 1954 | |
| 4″ | 100mm | 39 | 210 | 124 | 11 | 2807 | |
| 5″ | 125mm | 43,5 | 240 | 152 | 12 | 4190 | |
| 6″ | 150mm | 43 | 265 | 177 | 13 | 4785 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
