Reducing Socket

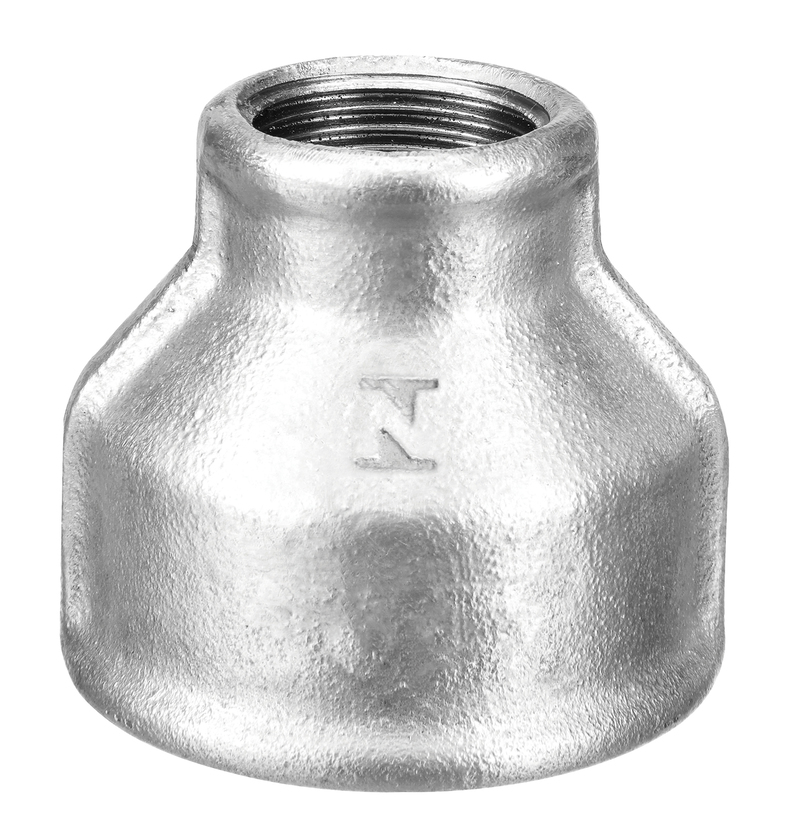

Reducing socket with two female ends (figure 240), to join pipes of different sizes. Available in 26 size combinations, from 3/8 x 1/4" to 4 x 3". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1232023 | REDUCING SOCKET 3/8×1/4" | BSP | 240 | |
| 1232025 | REDUCING SOCKET 1/2×1/4" | BSP | 240 | |
| 1232026 | REDUCING SOCKET 1/2×3/8" | BSP | 240 | |
| 1232028 | REDUCING SOCKET 3/4×3/8" | BSP | 240 | |
| 1232029 | REDUCING SOCKET 3/4×1/2" | BSP | 240 | |
| 1232031 | REDUCING SOCKET 1×3/8" | BSP | 240 | |
| 1232032 | REDUCING SOCKET 1×1/2" | BSP | 240 | |
| 1232033 | REDUCING SOCKET 1×3/4" | BSP | 240 | |
| 1232035 | REDUCING SOCKET 1.1/4×1/2" | BSP | 240 | |
| 1232036 | REDUCING SOCKET 1.1/4×3/4" | BSP | 240 | |
| 1232037 | REDUCING SOCKET 1.1/4×1" | BSP | 240 | |
| 1232040 | REDUCING SOCKET 1.1/2×3/4" | BSP | 240 | |
| 1232041 | REDUCING SOCKET 1.1/2×1" | BSP | 240 | |
| 1232042 | REDUCING SOCKET 1.1/2×1.1/4" | BSP | 240 | |
| 1232045 | REDUCING SOCKET 2×1" | BSP | 240 | |
| 1232046 | REDUCING SOCKET 2×1.1/4" | BSP | 240 | |
| 1232047 | REDUCING SOCKET 2×1.1/2" | BSP | 240 | |
| 1232049 | REDUCING SOCKET 2.1/2×1.1/4" | BSP | 240 | |
| 1232050 | REDUCING SOCKET 2.1/2×1.1/2" | BSP | 240 | |
| 1232051 | REDUCING SOCKET 2.1/2×2" | BSP | 240 | |
| 1232054 | REDUCING SOCKET 3×1.1/2" | BSP | 240 | |
| 1232055 | REDUCING SOCKET 3×2" | BSP | 240 | |
| 1232056 | REDUCING SOCKET 3×2.1/2" | BSP | 240 | |
| 1232058 | REDUCING SOCKET 4×2" | BSP | 240 | |
| 1232059 | REDUCING SOCKET 4×2.1/2" | BSP | 240 | |
| 1232060 | REDUCING SOCKET 4×3" | BSP | 240 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | Weight (g) |
| 3/8″x1/4″ | 10mm x 8mm | 30 | 37 | |
| 1/2″x1/4″ | 15mm x 8mm | 36 | 58 | |
| 1/2″x3/8″ | 15mm x 10mm | 36 | 65 | |
| 3/4″x3/8″ | 20mm x 10mm | 39 | 95 | |
| 3/4″x1/2″ | 20mm x 15mm | 39 | 95 | |
| 1″x3/8″ | 25mm x 10mm | 45 | 129 | |
| 1″x1/2″ | 25mm x 15mm | 45 | 123 | |
| 1″x3/4″ | 25mm x 20mm | 45 | 142 | |
| 1.1/4″x1/2″ | 32mm x 15mm | 50 | 213 | |
| 1.1/4″x3/4″ | 32mm x 20mm | 50 | 208 | |
| 1.1/4″x1″ | 32mm x 25mm | 50 | 229 | |
| 1.1/2″x3/4″ | 40mm x 20mm | 55 | 284 | |
| 1.1/2″x1″ | 40mm x 25mm | 55 | 256 | |
| 1.1/2″x1.1/4″ | 40mm x 32mm | 55 | 260 | |
| 2″x1″ | 50mm x 25mm | 65 | 373 | |
| 2″x1.1/4″ | 50mm x 32mm | 65 | 401 | |
| 2″x1.1/2″ | 50mm x 40mm | 65 | 405 | |
| 2.1/2″x1.1/4″ | 65mm x 32mm | 74 | 602 | |
| 2.1/2″x1.1/2″ | 65mm x 40mm | 74 | 579 | |
| 2.1/2″x2″ | 65mm x 50mm | 74 | 620 | |
| 3″x1.1/2″ | 80mm x 40mm | 80 | 795 | |
| 3″x2″ | 80mm x 50mm | 80 | 912 | |
| 3″x2.1/2″ | 80mm x 65mm | 80 | 870 | |
| 4″x2″ | 100mm x 50mm | 94 | 1535 | |
| 4″x2.1/2″ | 100mm x 65mm | 94 | 1595 | |
| 4″x3″ | 100mm x 80mm | 94 | 1687 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
