45° Tee

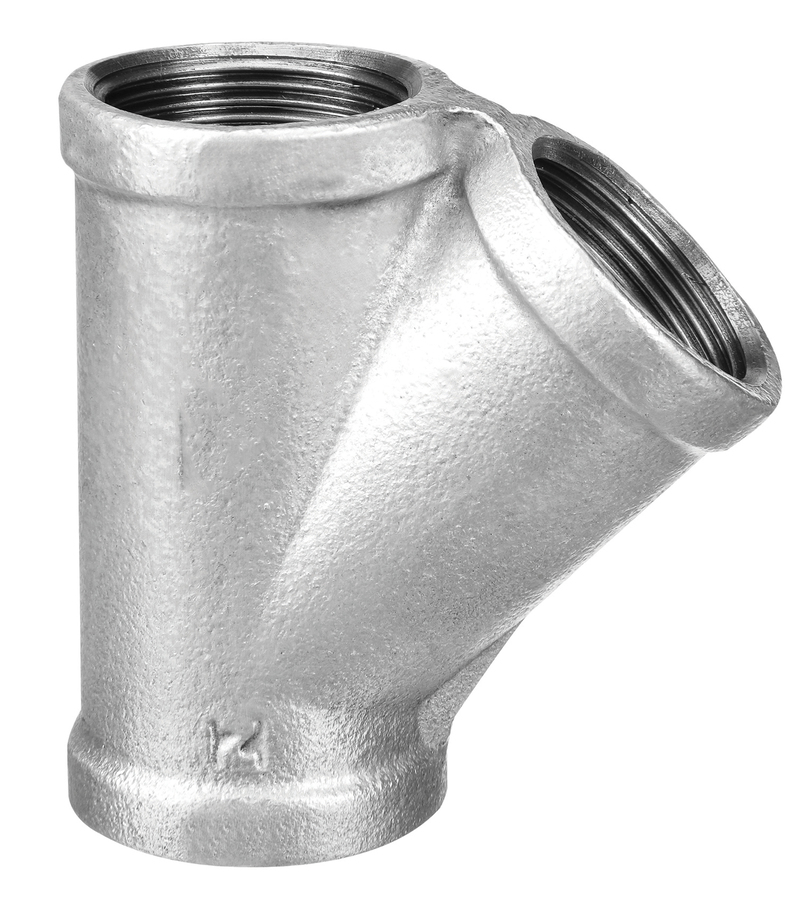

Tee with a 45° branch (figure 165). The angled inlet follows the direction of flow and creates less turbulence than a 90° tee. Available in 9 sizes, from 1/2" to 4". BSP thread, to ABNT NBR 6943, ISO 49 and EN 10242, the standards for threaded malleable cast iron fittings. Working pressure of 25 bar (360 psi) up to 120 °C and 20 bar (290 psi) up to 300 °C, with a test pressure of 100 bar.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Code | Description | Thread | Figure |
| 1254004 | 45º TEES 1/2" | BSP | 165 | |
| 1254006 | 45º TEES 3/4" | BSP | 165 | |
| 1254007 | 45º TEES 1" | BSP | 165 | |
| 1254008 | 45º TEES 1 1/4" | BSP | 165 | |
| 1254009 | 45º TEES 1 1/2" | BSP | 165 | |
| 1254010 | 45º TEES 2" | BSP | 165 | |
| 1254011 | 45º TEES 2 1/2" | BSP | 165 | |
| 1254012 | 45º TEES 3" | BSP | 165 | |
| 1254014 | 45º TEES 4" | BSP | 165 |
| Quote | Diameter (in) | Diameter (mm) | A (mm) | B (mm) | Weight (g) |
| 1/2″ | 15mm | 59 | 43 | 150 | |
| 3/4″ | 20mm | 70 | 52 | 239 | |
| 1″ | 25mm | 83 | 61 | 403 | |
| 1.1/4″ | 32mm | 100 | 74 | 591 | |
| 1.1/2″ | 40mm | 111 | 83 | 776 | |
| 2″ | 50mm | 131 | 100 | 1292 | |
| 2.1/2″ | 65mm | 161 | 123 | 1784 | |
| 3″ | 80mm | 184 | 145 | 2903 | |
| 4″ | 100mm | 228 | 182 | 5020 |
| Unit | Service up to 120 °C | Service up to 300 °C | Test (ambient) |
| lbf/pol² | 360 | 290 | 1500 |
| kgf/cm²(bar) | 25 | 20 | 100 |
| Unit conversion | Equivalent |
| 1 bar | 14,5 psi |
| 1 bar | 1 kgf/cm² |
| 1 bar | 0,1 MPa |
| 1 psi | 1 lbf/pol² |
