PVC

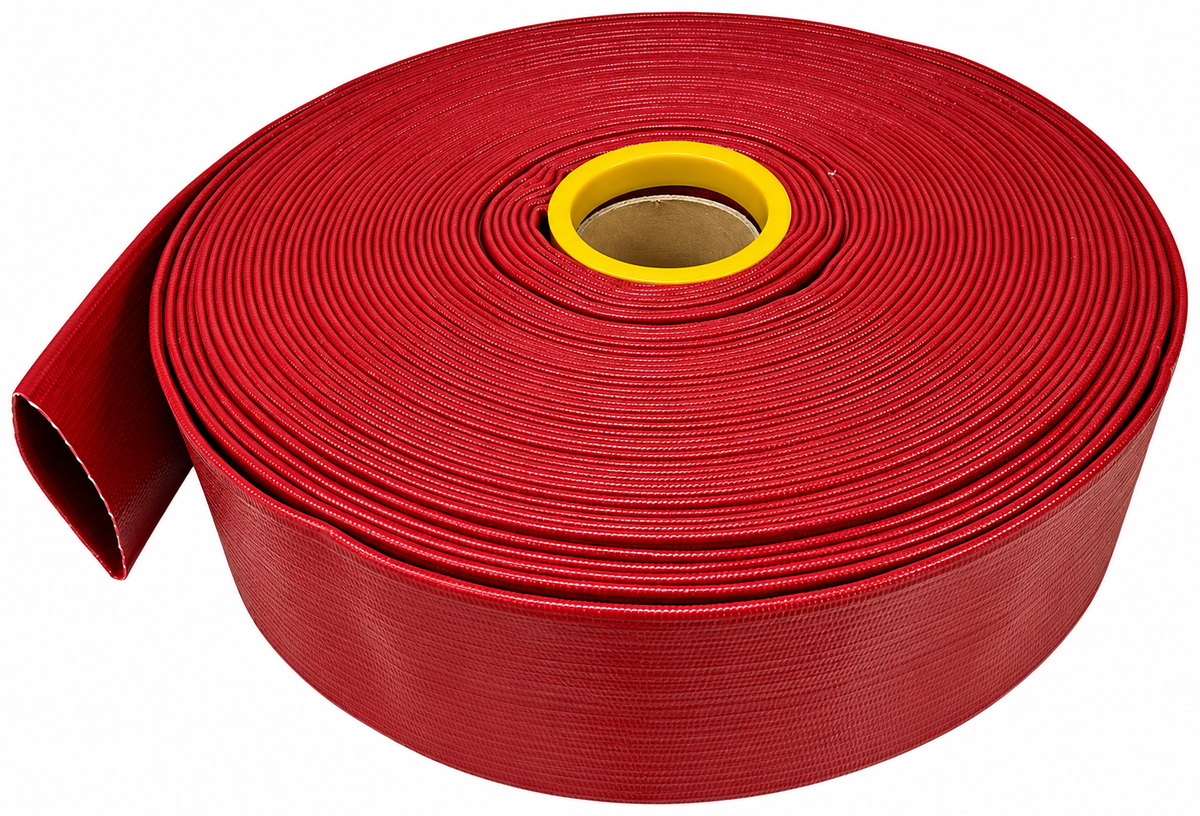

Red PVC Thermoplastic Lay-Flat Hoses
Red PVC thermoplastic lay-flat hose with polyester weave and yarn reinforcement, for water and slurry transfer in water trucks, irrigation, drainage, mining and civil construction. It works at 10 bar, twice the blue version, with a 22 bar minimum burst pressure, and is the choice when the line needs more pressure without giving up the flat profile. Available from 2" to 4", in 100 m reels. Working temperature: -5 °C to +55 °C.
Sold by quotation. State quantity and size for a quick reply.
Technical specifications
| Quote | Diameter (in) | Diameter (mm) | Working Press. (bar) | Working Press. (PSI) | Working Press. (m H2O) | Burst Press. (bar) | Burst Press. (PSI) | Volume (m³) | Roll (m) |
| 2" | 51 | 10 | 145 | 102 | 22 | 319 | 0,039 | 100 | |
| 2.1/2" | 64 | 10 | 145 | 102 | 22 | 319 | 0,047 | 100 | |
| 3" | 76 | 10 | 145 | 102 | 22 | 319 | 0,060 | 100 | |
| 4" | 102 | 10 | 145 | 102 | 22 | 319 | 0,083 | 100 |
